Vertical sleeve machine
Intelligent
Efficient
Energy saving
Beautiful
Precision
compatible
Simple
Safety
您的位置：首页>产品中心>Vertical sleeve machine
产品介绍 性能特点 技术参数 应用现场
产品介绍

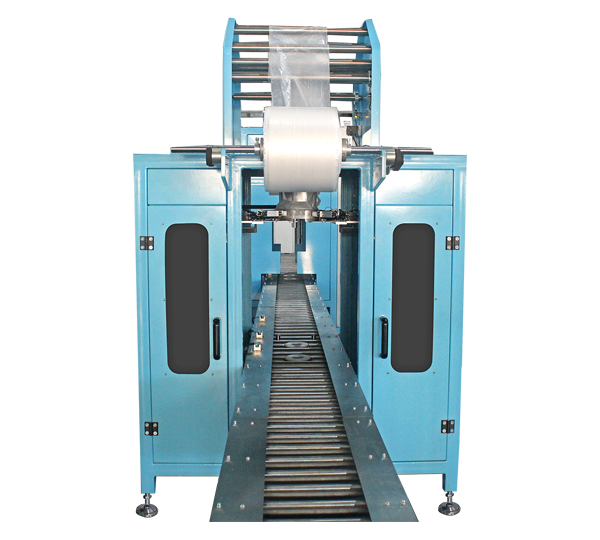

Smecta intelligent vertical bagging machine automatically completes the whole process of film covering, cutting and film suction. It can bag accurately according to the size of the chemical fiber silk roll, and the bag sealing is good, which can effectively save the silk roll. The equipment has a unique bag-taking method, and the success rate of bag-taking can reach 100%. Multiple bags can be set at one time. The bag-setting efficiency is high and the speed can reach 15 pieces/minute.
技术参数
Machine size L1389×W960×H2200mm
Bagging speed
 15pcs/min
Trumpet suitable for silk cake (the machine has 2 kinds of bagging specifications)
 The maximum diameter140mm
Large size silk cake (the machine has 2 kinds of bagging specifications)
 diameter140-225mm
Small film specifications
 W270mm
Large film specifications
 W400mm
Voltage
 380V/50HZ
Air pressure source control

6kg/cm²
